Preface

In the ever-evolving landscape of cyber threats, the IcedID loader stands out as a formidable banking Trojan with sophisticated capabilities. Originally known for its role as a banking malware, IcedID has grown to serve as a versatile loader for deploying additional malicious payloads. This analysis delves into the intricate mechanisms of IcedID, from its initial delivery through phishing or exploit kits, to its operational intricacies and data exfiltration methods.

Key areas of focus include the loader’s evasion techniques, persistence strategies, and communication with command-and-control servers. By dissecting IcedID’s functionality and evolution, this analysis aims to shed light on its impact on targeted systems and provide insights into effective detection and mitigation strategies.

Basic Static Analysis

In this section I used a simple tool named pe studio to get a general understanding of the loader. After unpacking I also used a command line tool named floss

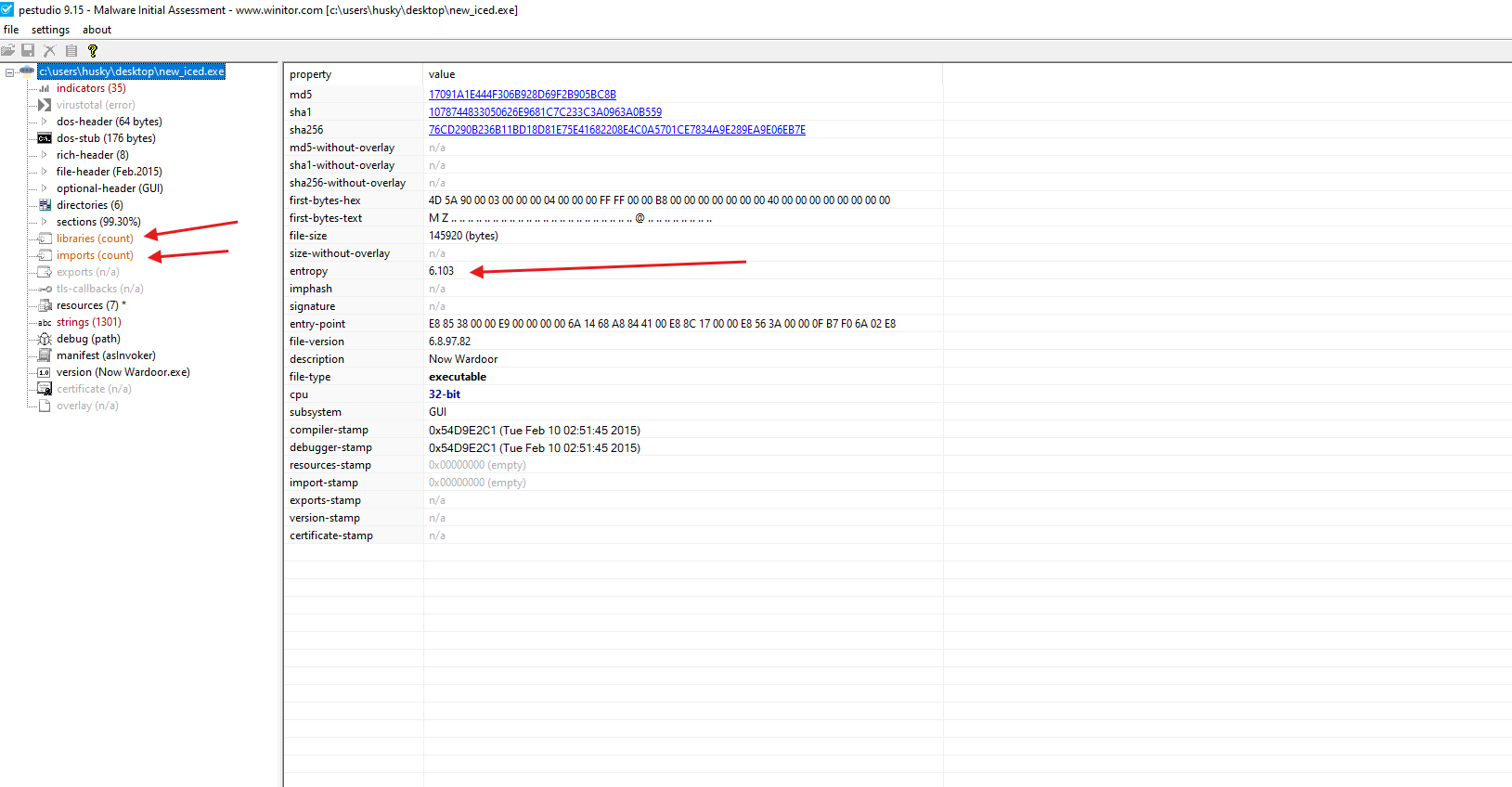

20240716223035
  • In this screenshot we can clearly see that pe studio is not able to properly counts the imports and the libraries which indicates to me that this sample might be packed
  • also we can note that there is a high entropy. I will have to unpack it to be able to proceed my analysis

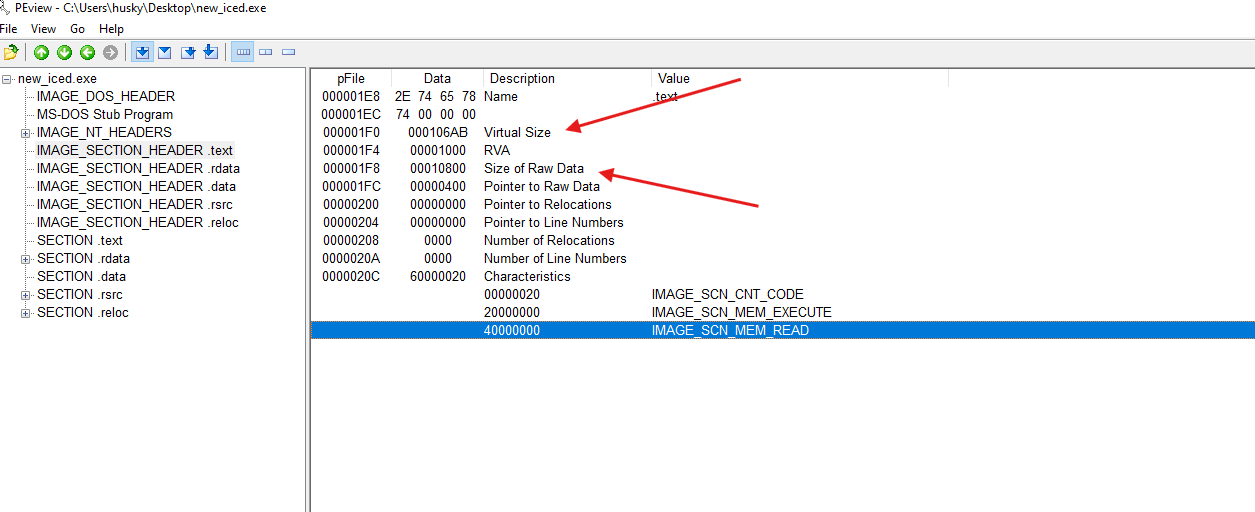

20240716223435
  • We can also see that the raw size is lower than the virtual size which might be another indicator that this sample is packed

⚠️ | Before proceeding further in our basic static analysis we will perform the unpacking steps with x32bdg, since we are focusing on the analysis, I will not put the process in this blog

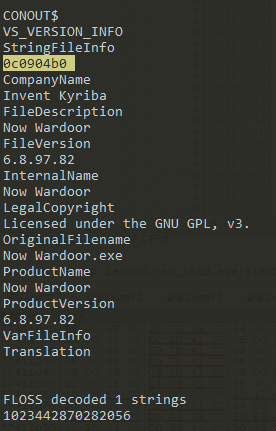

  • Interesting strings, Before unpacking 20240721140409
  • After unpacking, I can see some interesting parts of some URLs
    • /photo.png?id=%0.2X%0.8X%0.8X%s
    • boldidiotruss.xyz
    • nizaoplov.xyz
    • 153ishak.best
    • ilu21plane.xyz
  • I can also see some interesting libraries being imported which indicates to me that something is being downloaded
    • WinHttpQueryDataAvailable
    • WinHttpConnect
    • WinHttpSendRequest
    • WinHttpCloseHandle
    • WinHttpSetOption
    • WinHttpOpenRequest
    • WinHttpReadData
    • WinHttpQueryHeaders
    • WinHttpOpen
    • WinHttpReceiveResponse

Basic Dynamic Analysis

20240717061554

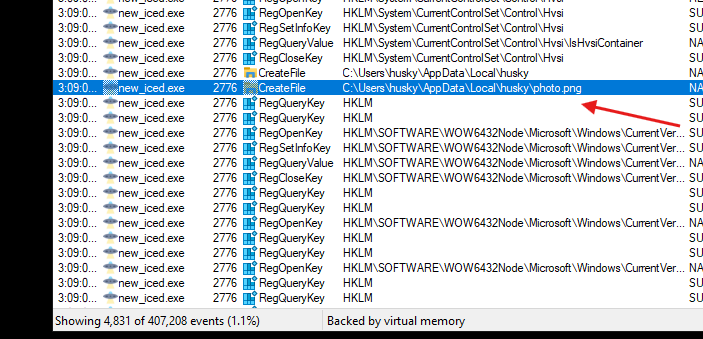

  • By detonating the malware we notice that it tried to create a file named photo.png

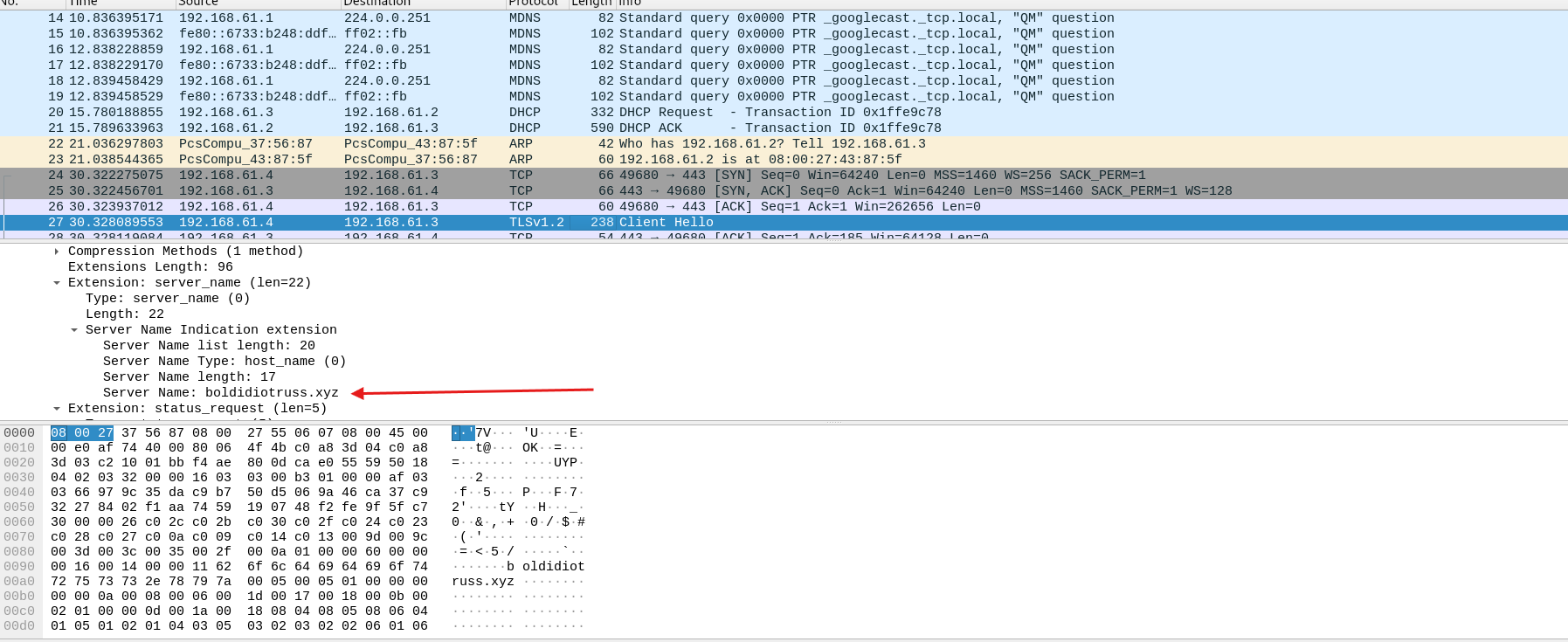

20240717062937
  • We can also see that a TLSv1.2 connection is made to boldidiotruss.xyz

Advanced Static Analysis

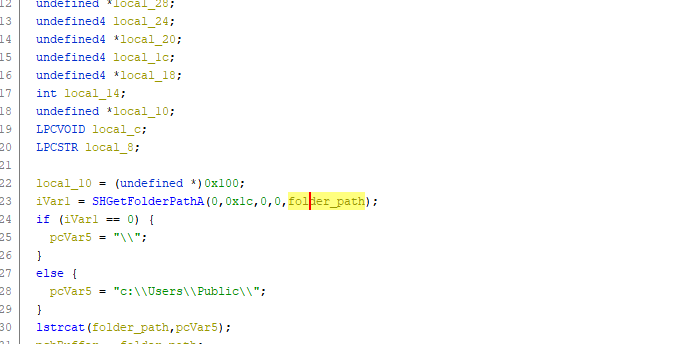

20240717081349

  • Here we can see that loader is calling the function SHGetFolderPathA and by looking at the documentation I can see that the second argument indicates the folder of interest in this case it is aiming for CSIDL_COMMON_DESKTOPDIRECTORY, which represents a common folder that appear on the desktop for all users and the typical path is C:\Users\Public\Desktop

  • We can also see that based upon the result the content of pcVar5 will be different and at the end it will be concatenate to the folder path

20240717081349
  • After that, we see that the GetUsernameA is used to fetch the current user, we also see that there is an attempt to create the directory
  • At the end, we can see that the string \\photo.png is appended to the current folder_path string

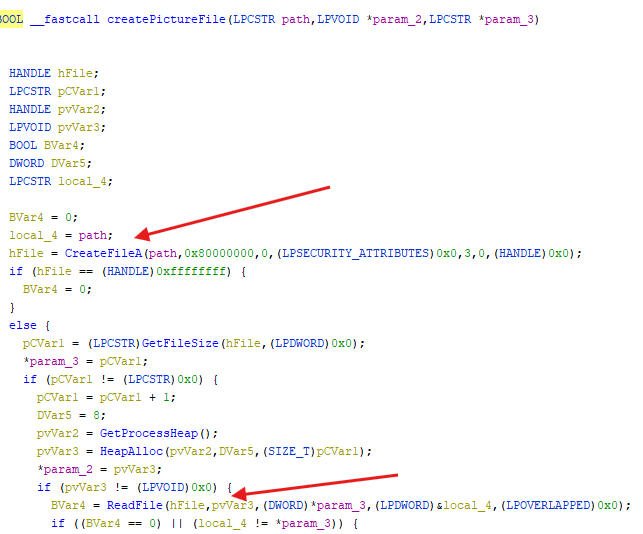

20240717085042
  • We can see the file path that was constructed earlier is used to create a file
20240717085910

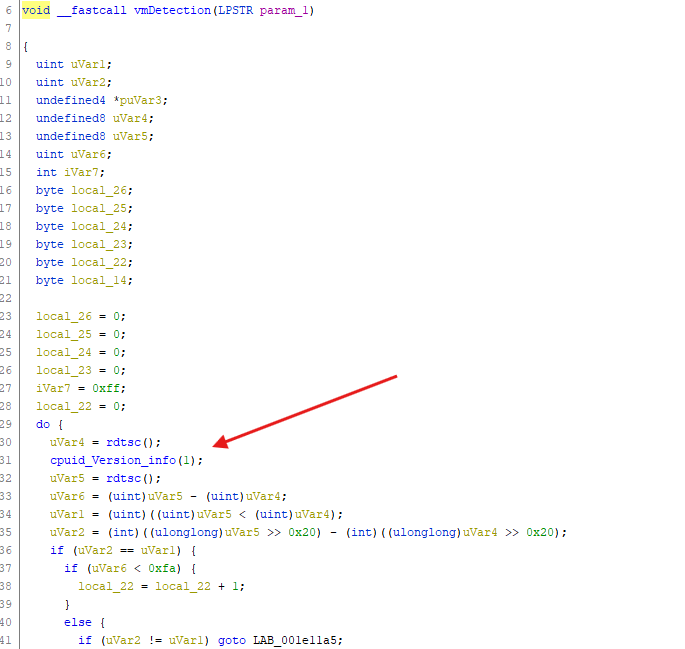

  • There’s some VM detection being performed by checking information about the CPU running the sample

⚠️ | Note that some functions have been renamed by me to facilitate the clarity of my analysis

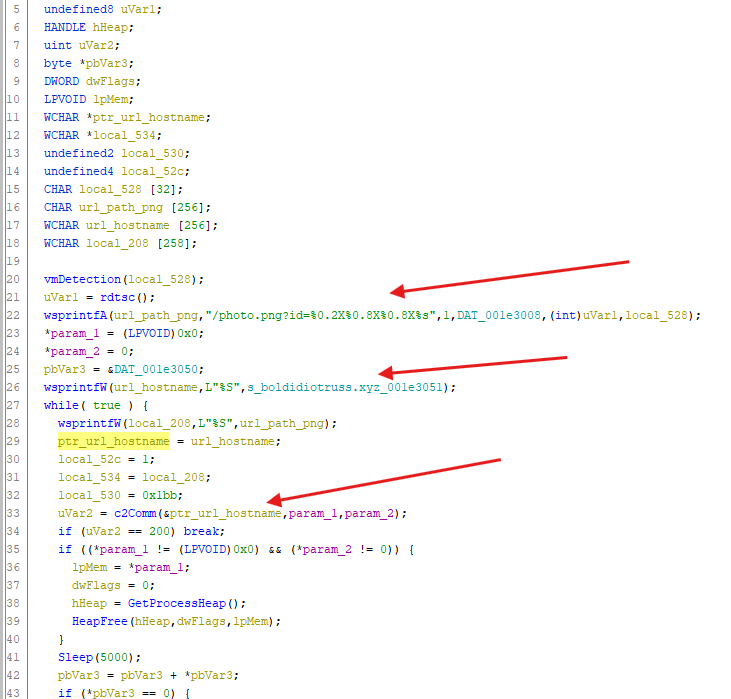

20240717090929
  • After the VM detection, there’s string formatting operation that is performed to construct the URL path to the .png file and also to the URL hostname
  • we can see that the result of the concatenation of the full URL is being sent to a function that will handle the communication with the possible the command & control center

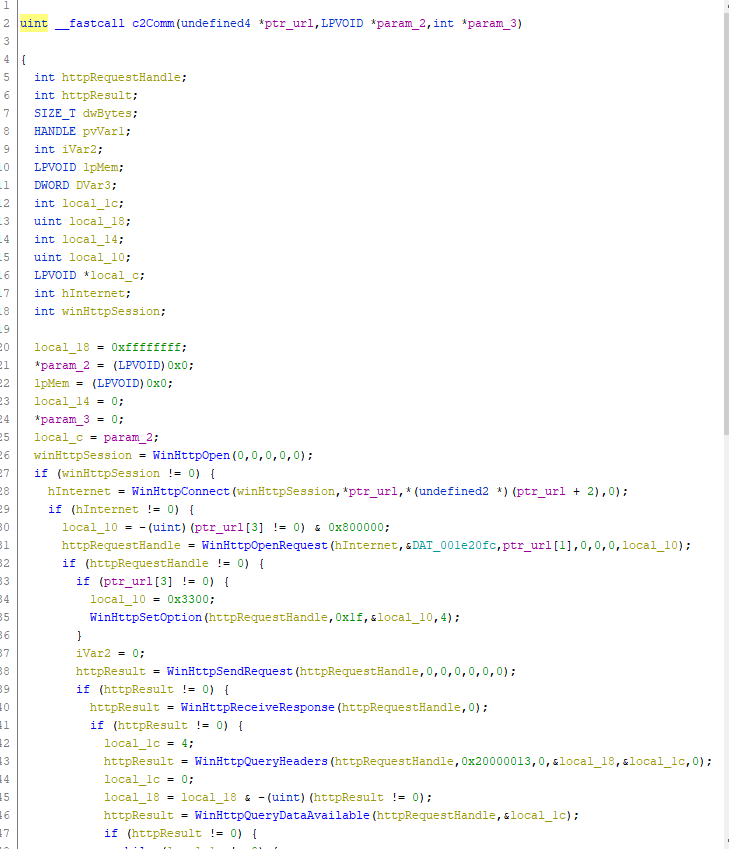

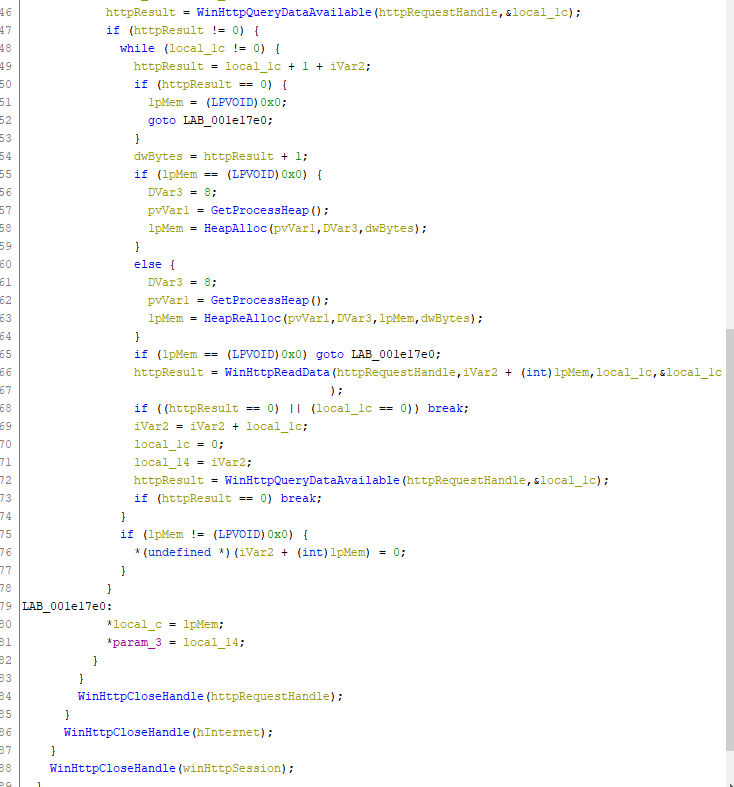

20240717092802 20240717092848
  • In these screenshots, we can clearly see the code the of the communication with the C2
  • Based on my analysis I deduct that a call his being made to verify that the command and control is active and running correctly, because of the parameters of the functions I can see that no data is actually being sent since it’s only performing a get request

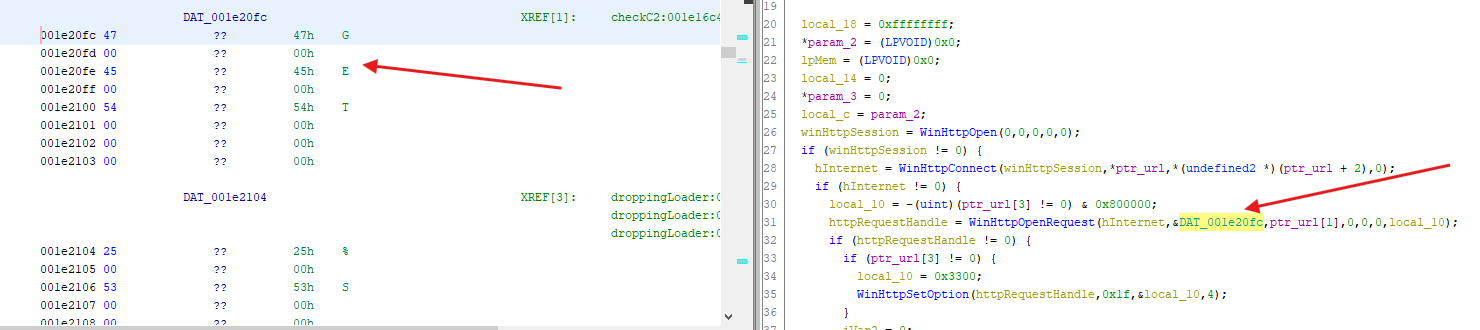

20240721122821
  • Now, I thought to myself why would they be communicating via an URL that looks like you’re fetching an image? Because, in reality you’re really just communicating, sending and receiving information stealthily. Think about it, if you look in Wireshark and see some request made to this URL you would only think that a picture his being fetched, but in reality, you’re data is probably being exfiltrated. I might be wrong in my analysis but that is what I get from it

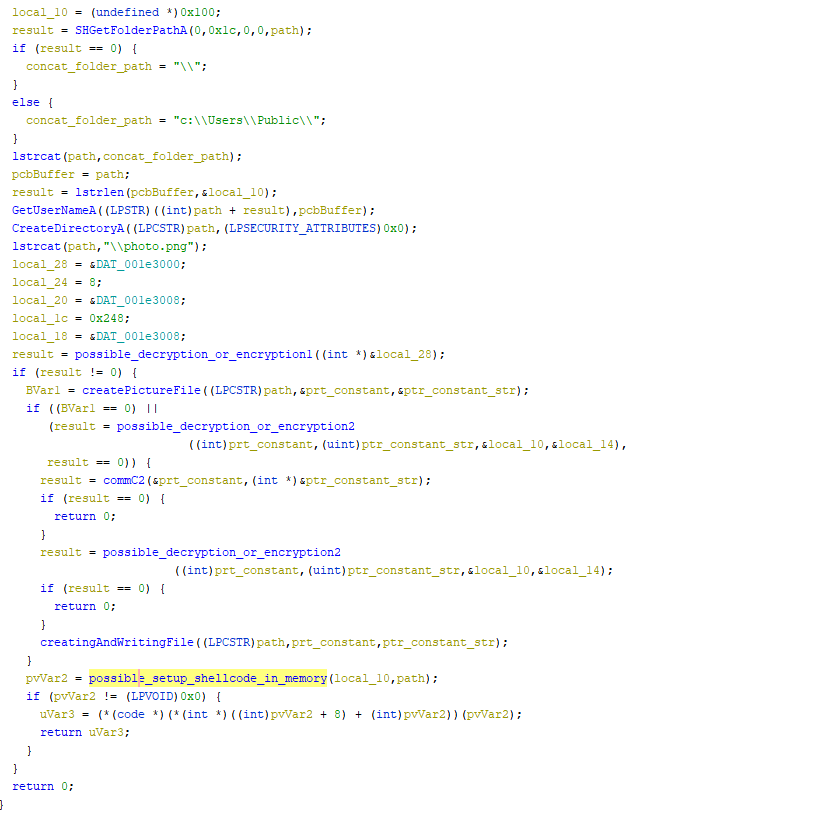

20240721123829
  • By looking at everything from a higher perspective, here’s what can I make of the general process of this Loader
    1. We create the path where we will store the malicious file
    2. we decrypt probably the shellcode that will be stored in that file temporary
    3. we create the file picture
    4. we decrypt something
    5. we check if the command & control center is active
    6. we write in the data that decrypted in that file
    7. we setting up the shellcode in memory and then we execute it

ℹ️ In my basic dynamic analysis we don’t see the call made to the url in question, that may be because the malware is able to detect that I’m using a vm, so it does not pursue the communication, we will confirm it later when we will be doing the Advanced Dynamic Analysis with our favorite debugger x32dbg.

Advanced Dynamic Analysis

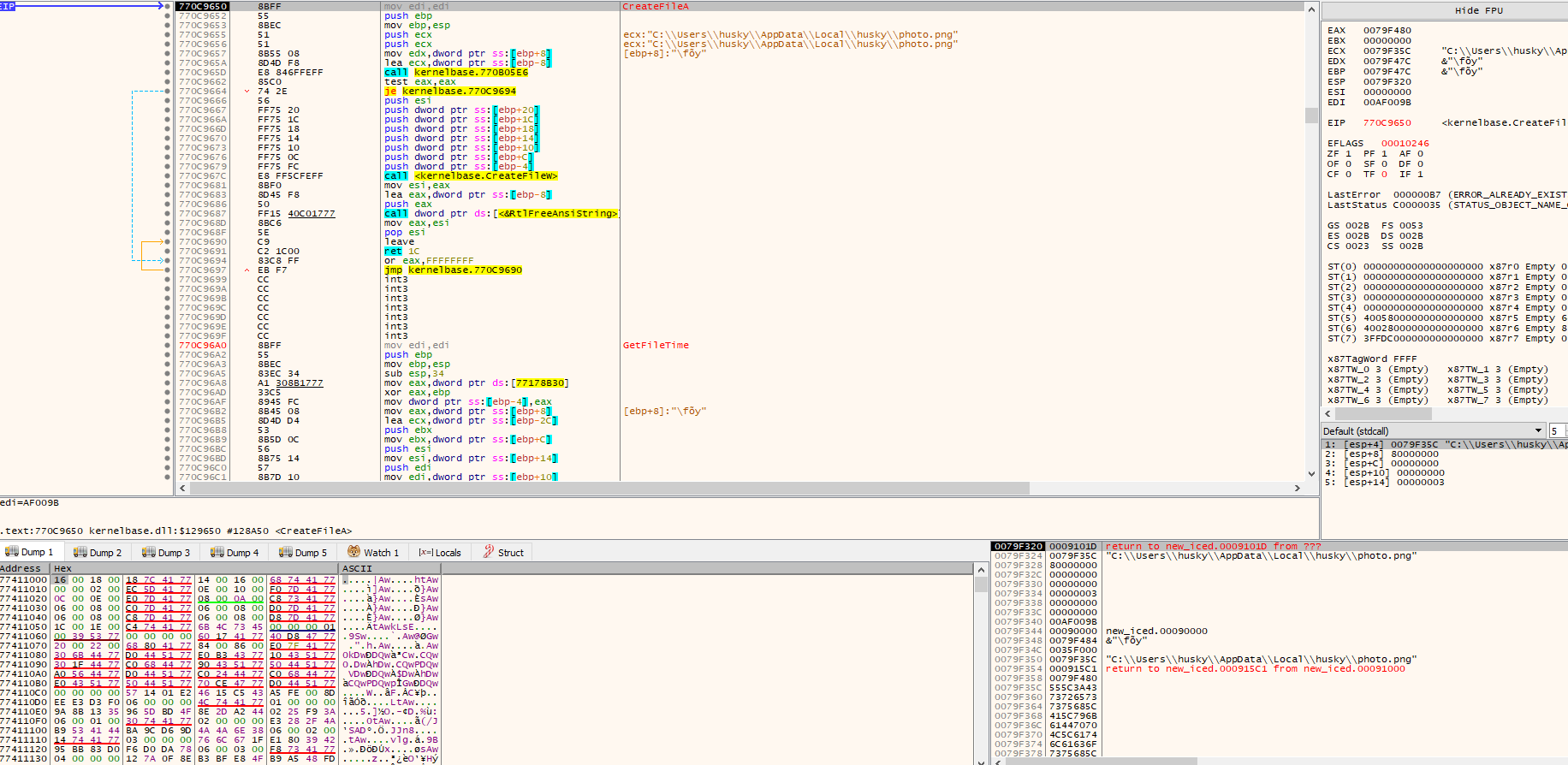

20240721131650
  • Here we can see the file path of the photo.png, by the way don’t mind the username, I got this box from the PMAT certification
20240721131953

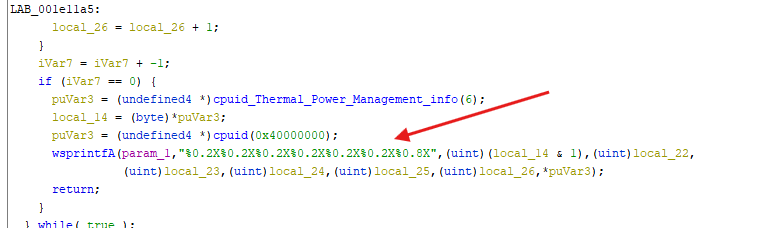

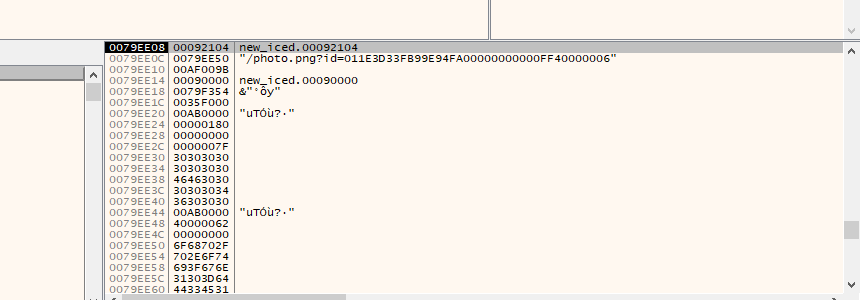

  • We can also see the URL being formed, you can see that there is type of string that is appended to it. It’s probably some data about the host being sent to the Command & Control Server , You can see some more details about the the construction of this string in the picture below

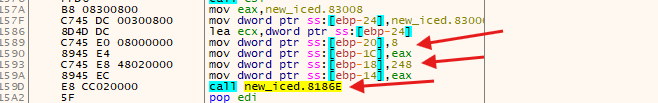

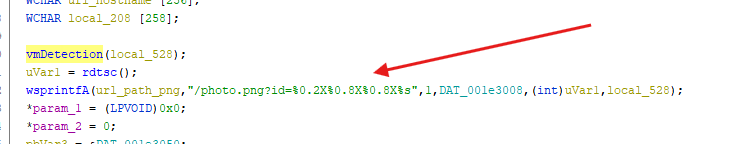

20240723093759 20240723093829 20240722105526
  • Here we can see the value 8 and 248 making a total of 256, so we can assume that this is the encryption function where the 8 represent key and the 248 the data

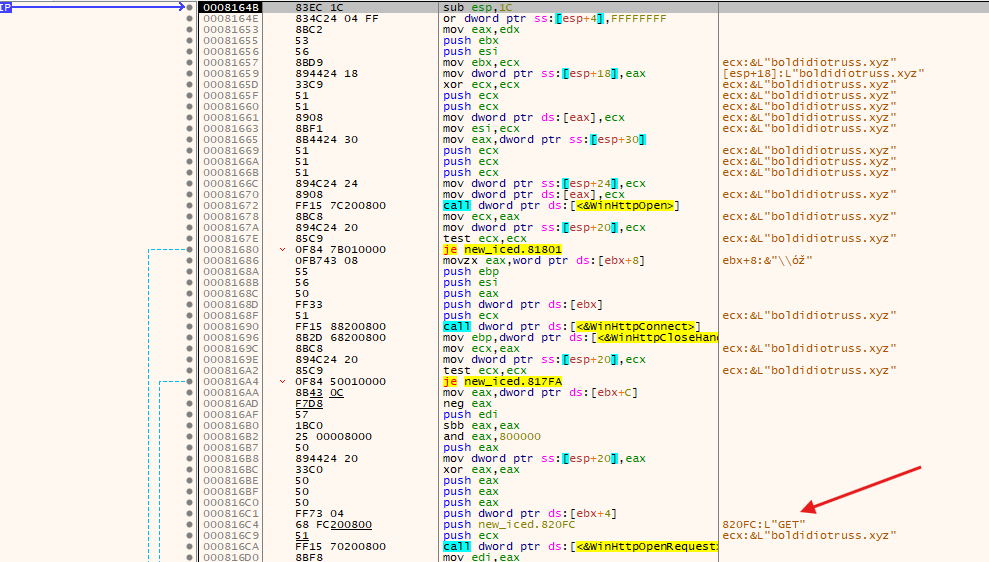

20240722110943
  • This screenshot show us clearly that a GET request is being made

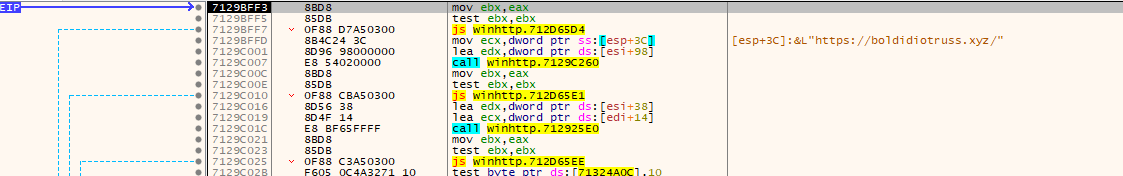

20240722111231

Rules & Signatures

rule IcedId_Ldr_Detection {

    meta:
        last_updated = "2024-07-21"
        author = "8erg"
        description = "Yara detection rule for IcedId Loader"

    strings:
        $magical_path = "c:\\Sizeanger\\CreatePick\\mixpractice\\Sciencescience\\KeyContain\\farterm\\Tiresubtract\\CenterSkinMass.pdb"

    condition:
        $magical_path
}

Conclusion

Well, this is it for this analysis. I really enjoyed this one! I’m really starting to get the hang of it. It’s interesting to see how some people develop their malware, you can see that there’s a lot of thought that are put into it. I’m really learning a lot. Well, I’ll stop babbling now. See you on the next one!
